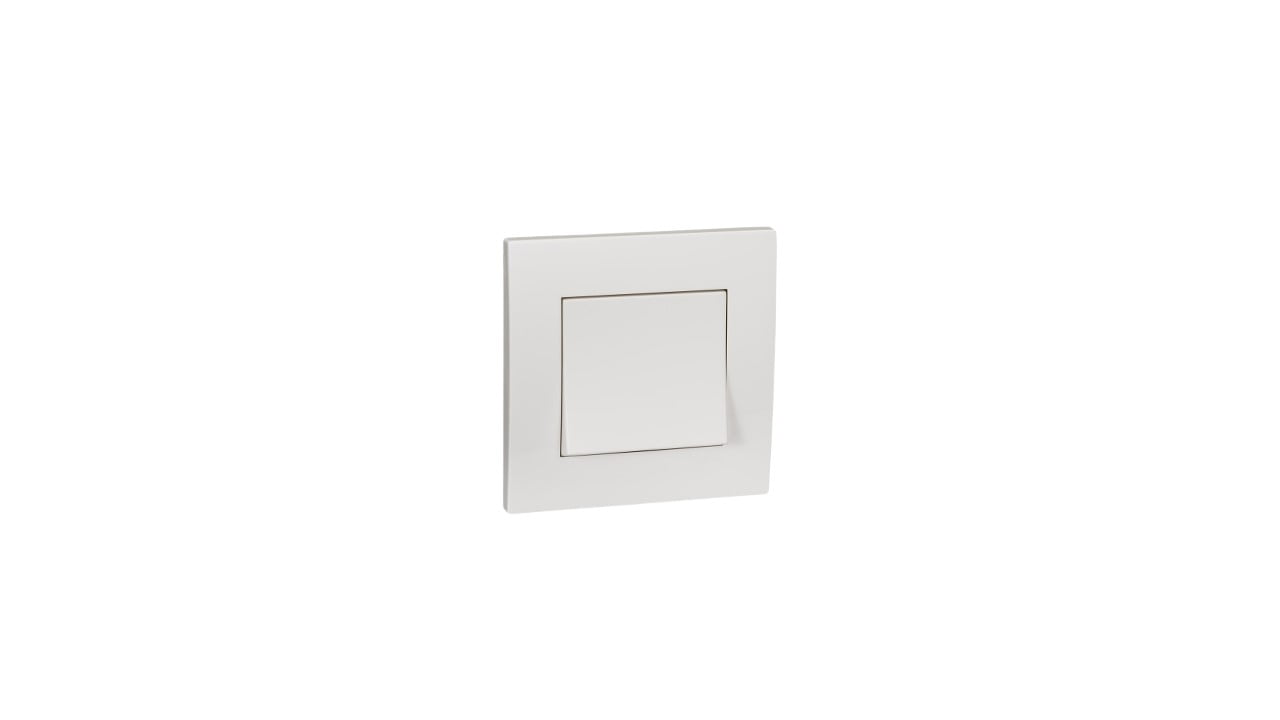

Name: SAKLAR HOTEL SINGLE VIVACE SCHNEIDER KB31_WE 1 GANG 2 WAY SWITCH
SKU: KB31_WE_G3
Availability: InStock

SAKLAR HOTEL SINGLE VIVACE SCHNEIDER KB31_WE 1 GANG 2 WAY SWITCH

Rp31.187

Specifications

Complementary
switch function	2-way
actuator	Rocker
number of gangs	1 gang
colour tint	White
material	Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base
projecting depth	8 mm
device mounting	Flush
mounting support	Wall mounted
fixing mode	By screw M3.5
fixing center	60.3 mm
embedding depth	35 mm
rated current	16 AX at 250 V AC, inductive 16 AX at 250 V AC, fluorescent
[Ue] rated operational voltage	250 V AC
network frequency	50 Hz
contacts material	Brass and phosphor bronze
connections – terminals	Pillar terminal
terminal identifier	L1 L2 COM
tightening torque	0.4 N.m
clamping connection capacity	2.5 mm²
width	87 mm
height	87 mm

Environment
standards	SS 227 IEC 60669-1 MS IEC 60669-1
ambient air temperature for operation	-5…40 °C
relative humidity	0…95 %
environmental characteristic	Indoor use

SAKLAR HOTEL SINGLE VIVACE SCHNEIDER KB31_WE 1 GANG 2 WAY SWITCH
